THR-45/150XP Rockwell, Superficial Rockwell hardness tester

Product Features:

• Italian design, modern and beautiful appearance, stable structure
• Touch screen interface, easy operation, multi-language versions
• Available for using after staring up, unnecessary for installing weights and debugging
• Electric loading, closed-loop control
• All Rockwell scales, 30 in total
• Automatically apply the initial load and main load
• Automatic correction of high, medium and low hardness numbers
• Automatic correction of load, with the load accuracy increased by a numerical level
• Set the password protection and parameters
• More information of sample and testing
• Data stored in USB flash disk, EXCEL format, easy for compiling and processing
• Adopt the modular design, easy maintenance
• Larger sample space, huge sample stage

Operation Interface:

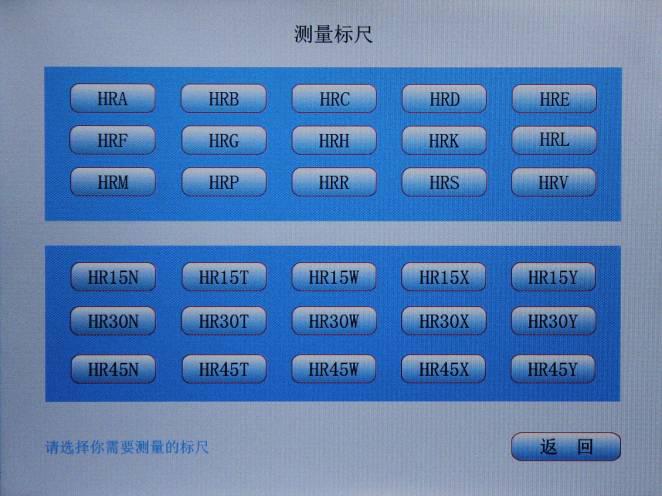

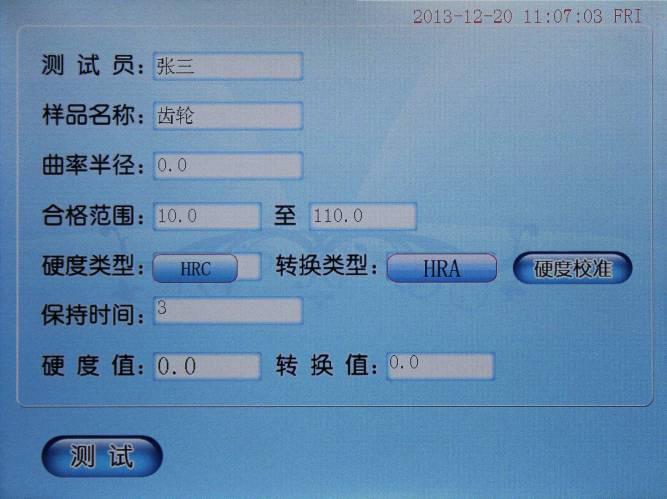

                             Main interface                                                                       All Rockwell scales, 30 in total

Automatic correction of high, medium and low hardness

numbers                                                                                         Automatic correction of Test force

 Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.
Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.

Technical Parameters:

Standard Accessories:
